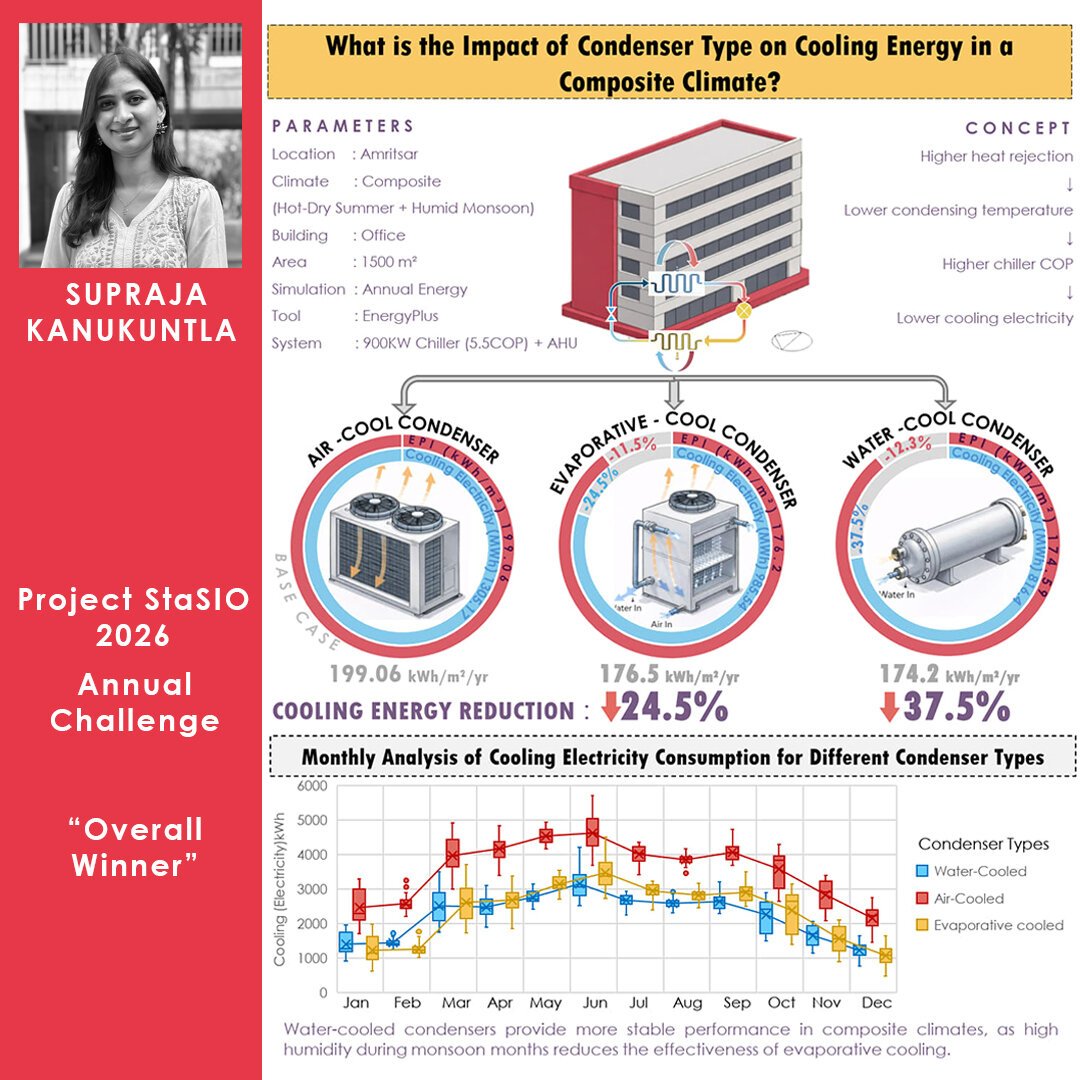

The infographic entry by Supraja presented a comparative analysis of condenser technologies and their impact on cooling electricity consumption for an office building located in the composite climate of Amritsar, India. Three condenser configurations — air-cooled, evaporative-cooled, and water-cooled systems — are evaluated through building energy simulations to examine their operational performance and annual energy implications.
System schematics, simulation parameters, and annual electricity consumption data were organized through a clear comparative framework, enabling direct evaluation of each condenser strategy. The monthly energy analysis highlighted seasonal variations in cooling performance, demonstrating that water-cooled condensers maintain the lowest and most stable electricity consumption throughout the year.
The work further revealed the climatic sensitivity of evaporative-cooled systems, where performance declines during monsoon periods due to elevated humidity levels reducing evaporative cooling effectiveness. Through layered visualization, structured data hierarchy, and climate-responsive interpretation, the infographic by Supraja communicated the relationship between condenser technology, seasonal performance, and building energy efficiency in a concise and visually engaging narrative.
Project STASIO is a globally relevant platform for effective and innovative communication of complex simulation results. Project STASIO is jointly run by ASHRAE 209 Committee members and IBPSA USA.
